Ultrasonic Machine 100mm

Model : S-UT100
Product Categories : Ultrasonic Machine


Mainly used in the lace clothing, surgical gown, synthetic filter bags, hair decorations, satin packaging, raincoat, tablecloth, bedsheet, pillowcase, quilt cover, handkerchief, ribbon, disposable medical gowns, hook and loop cutting, non-woven bags, and shower curtains.

This machine is using ultrasonic energy to cut, weld, seal, seam perforating, and emboss. It removes the need of needle stitching and sewing thread, reducing material cost with higher production efficiency. It will cause no-stitch wrinkles and no shrinkage. Very convenient use and user friendly. It does not produce any spark, and smoke, which is safe for production.

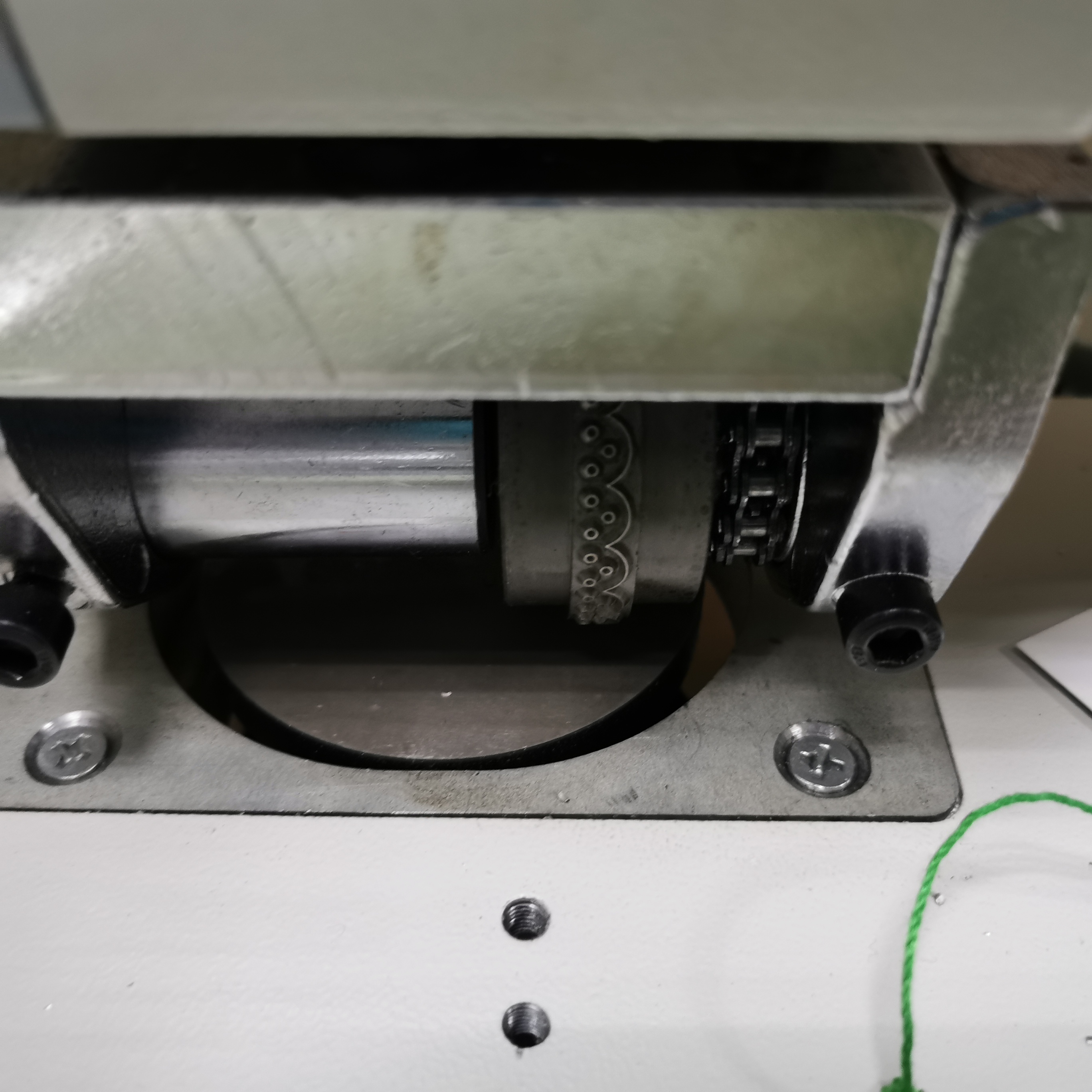

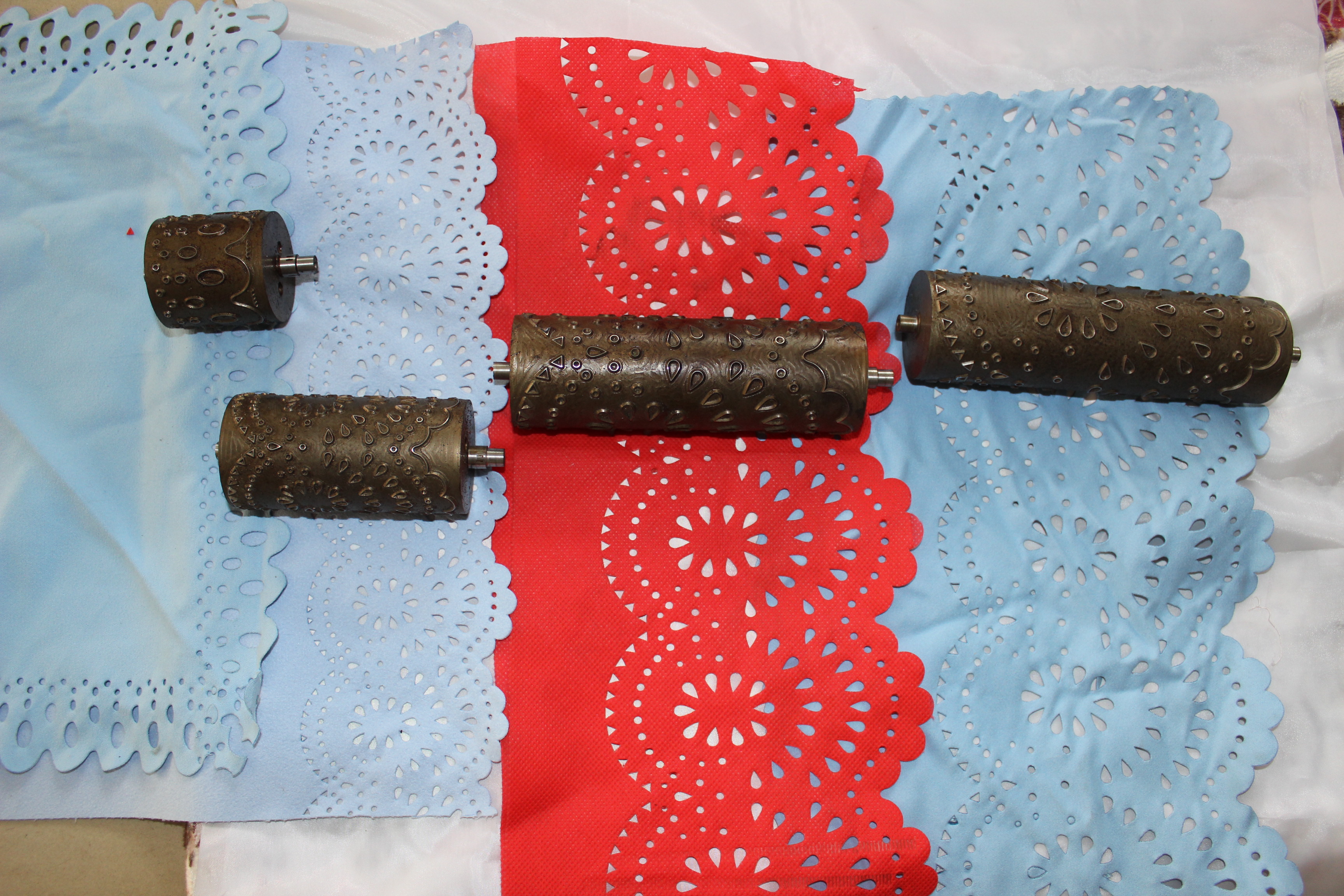

Adopts the use of durable alloy rollers that are replaceable for various roller design of options.



Output 1500W
Frequency 20 Khz
Voltage 220V 50-60Hz
Roller Size 50mm
Working Speed 0-20 m / min
Packaging Size 127 x 65 x 130 cm
GW 110 kg
